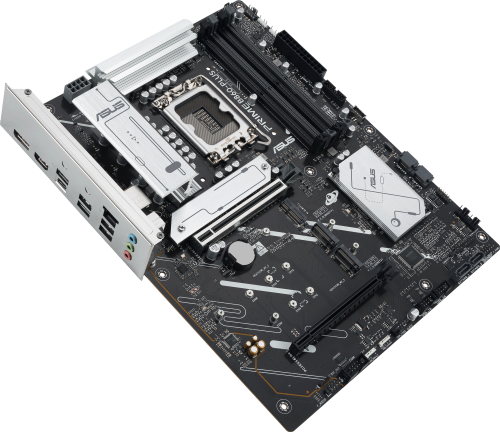

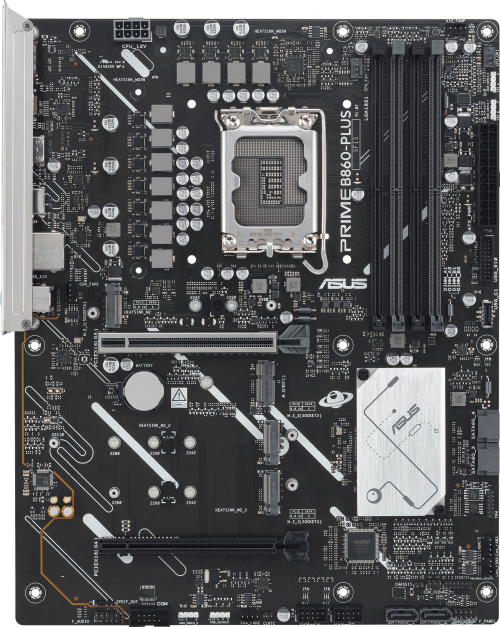

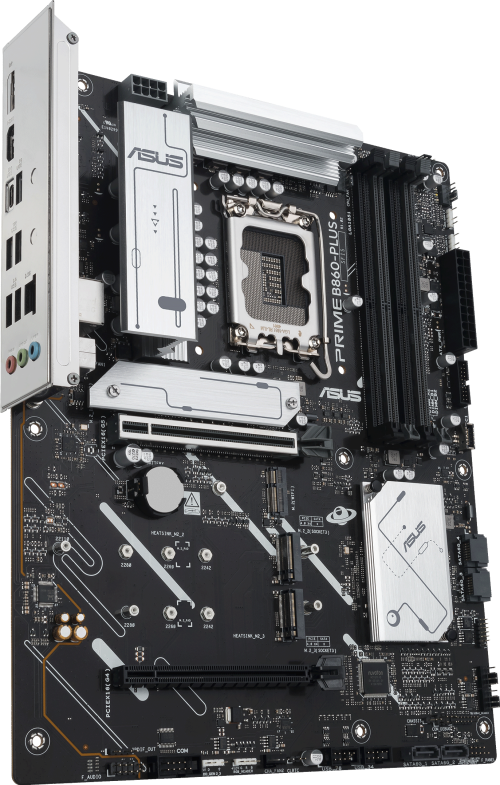

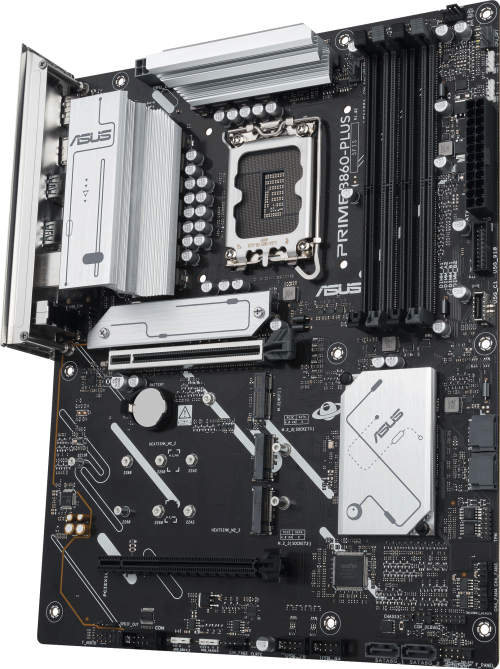

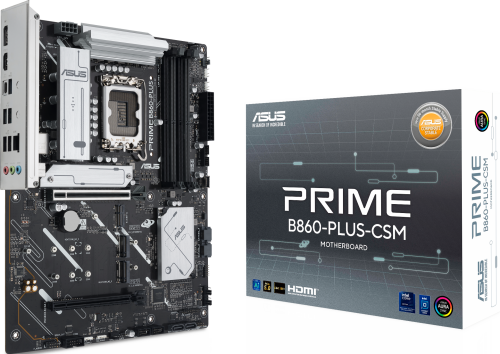

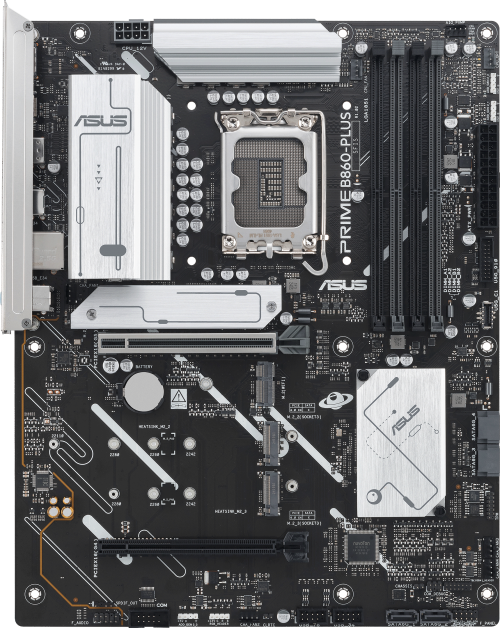

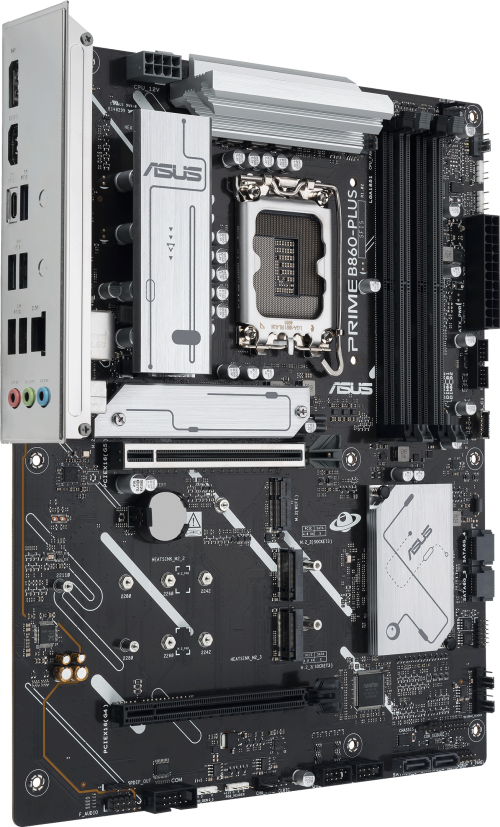

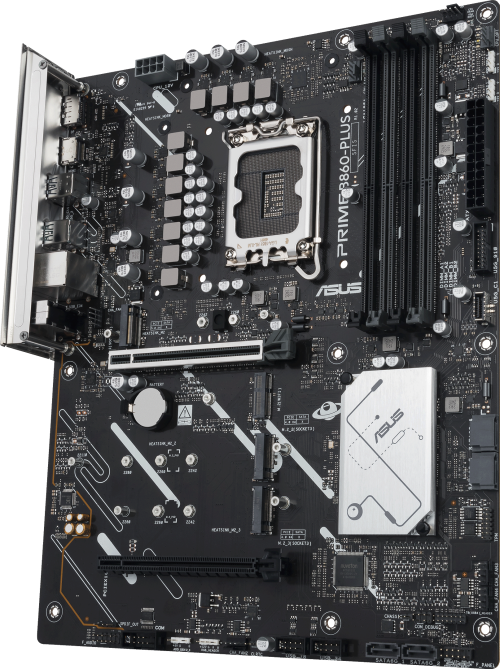

PRIME B860-PLUS-CSM
| 商品名 | PRIME B860-PLUS-CSM |
|---|---|
| 商品コード | 1000051461 |
| 品目コード | ASU-PRIME/B860-PLUS-CSM |
| JANコード | 0197105814851 |
| メーカー | ASUS |
| メーカーURL | http://www.asus.co.jp/ |
| 想定売価（税込） | 要ログイン |
| 仕切価格（税抜） | 要ログイン |
（注：在庫、価格は2025/12/05 14:08時点のものです）
ASUS PRIME B860-PLUS デスクトップ マザーボード 90MB1KA0-M0JAYC
未
パッケージサイズ
| 幅（W） | 27.3cm |
|---|---|
| 奥行き（D） | 6.8cm |
| 高さ（H） | 35.3cm |
| 重量（Kg） |
本体サイズ
| 幅（W） | |
|---|---|
| 奥行き（D） | |
| 高さ（H） | |
| その他 | |
| 重量（Kg） | 1.1kg |
法令関連
| 電気用品安全法(PSE) | PSE対象外 |
|---|---|
| 電波法(TELEC認証) | TELEC対象外 |
| RoHS対応 | RoHS対応 |
スペック情報
| 対応CPU | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|---|
| 搭載チップセット | Intel® B860 Chipset |
| メインメモリー | "4 x DIMM slots, max. 192GB, DDR5 Support up to 8200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| グラフィックス機能 | 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ***** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| 拡張スロット | Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| ストレージ機能 | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wi-Fi | "M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately." |
| Bluetooth® | |
| USB機能 | Rear USB (Total 6 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps port (1 x USB Type-C®) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| オーディオ機能 | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

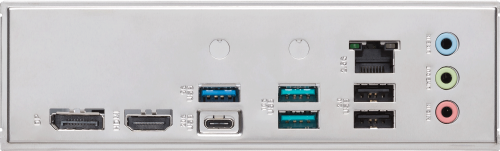

| 背面インターフェース | 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
| 特別な機能 | ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| BIOS機能 | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| その他 | |

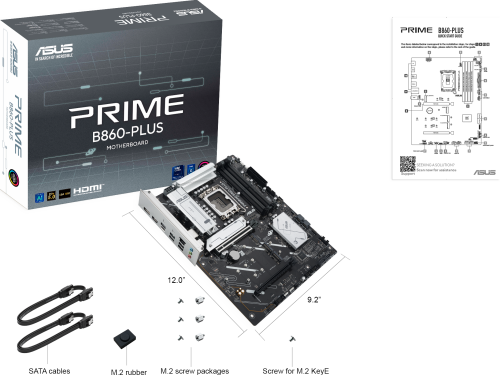

| 主な付属品 | Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x Quick start guide |
| OS | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| フォームファクター（サイズW×D） | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| 寸法 | 305mm*244mm*49mm |
| Color Box (mm) | 377mm*372mm*302 mm |
| 製品重量 | 0.896 Kg |
| 製品重量（梱包あり）（KG） | 1.558 Kg |
| Manageability | WOL by PME, PXE |
| Remote Management Features |
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Intel® B860 Chipset
