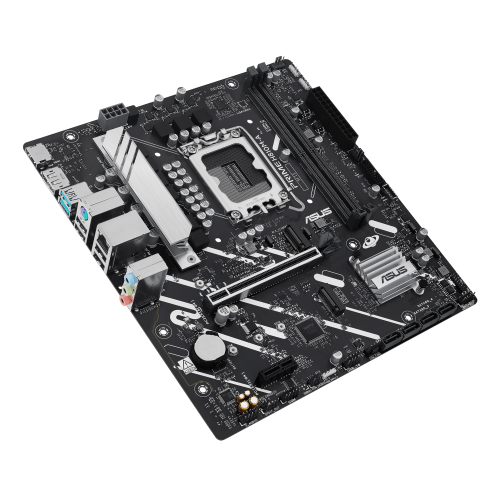

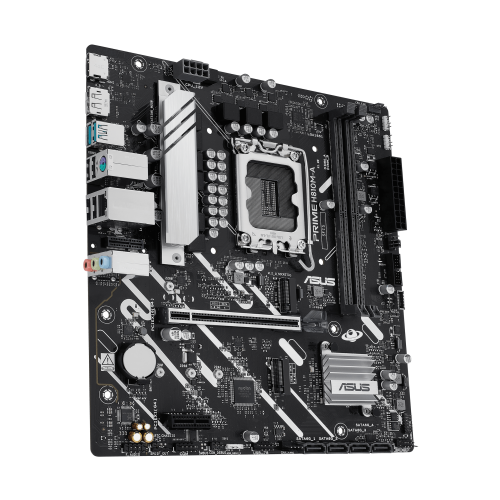

ASUS PRIME H810M-A-CSM デスクトップ マザーボード 90MB1KK0-M0JAYC

・超高速接続: PCIe 4.0、2 つの M.2 スロット、Intel® 1Gb イーサネット、USB 3.2 Gen 2 をサポート
・包括的な冷却: VRM ヒートシンク、PCH ヒートシンク、Fan Xpert 2+
・Aura Sync RGB: オンボードのアドレス指定可能な Gen 2 ヘッダーと RGB LED ストリップ用の Aura RGB ヘッダー。Aura Sync 対応ハードウェアと簡単に同期できます
・ASUS Control Center Express: 強化されたデータ保護を実現するリアルタイム IT 監視および管理ソフトウェア

パッケージサイズ

幅（W）	27cm
奥行き（D）	5.2cm
高さ（H）	26cm
重量（Kg）

本体サイズ

幅（W）
奥行き（D）
高さ（H）
その他
重量（Kg）	600g

法令関連

電気用品安全法(PSE)	PSE対象外
電波法(TELEC認証)	TELEC対象外
RoHS対応	RoHS対応

スペック情報

対応CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット	Intel® H810 Chipset
メインメモリー	2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
グラフィックス機能	1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution.
拡張スロット	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ機能	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Intel® 1Gb Ethernet port* ASUS LANGuard *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wi-Fi	"V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately."
Bluetooth®
USB機能	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
オーディオ機能	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

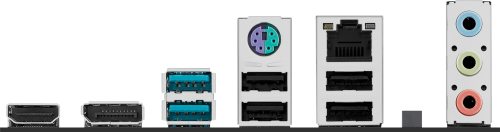

背面インターフェース	2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
特別な機能	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS機能	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
その他

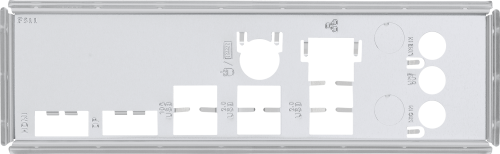

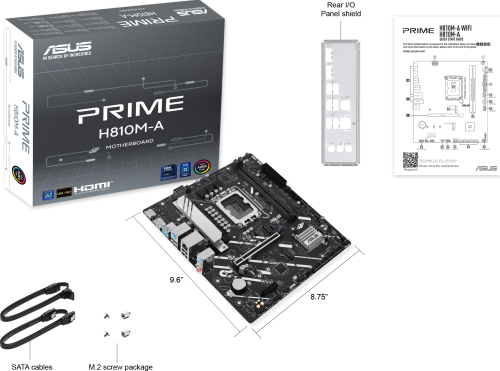

主な付属品	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x ACC Express activation key card 1 x Quick start guide
OS	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

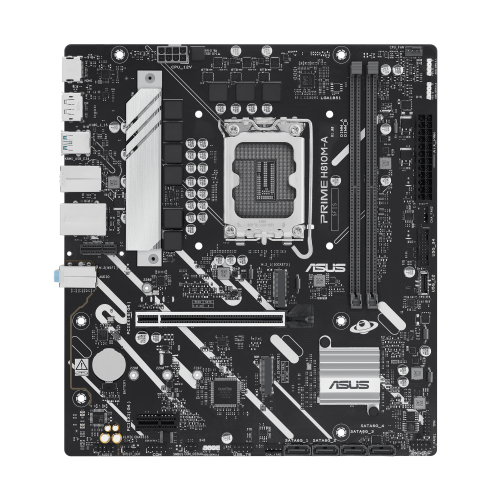

フォームファクター（サイズW×D）	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
寸法
Color Box (mm)
製品重量
製品重量（梱包あり）（KG）
Manageability	WOL by PME, PXE
Remote Management Features

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Intel® H810 Chipset
